Gynecology Handle with Radial Fiber for Vaginal Tightening and Rejuvenation

Appearance

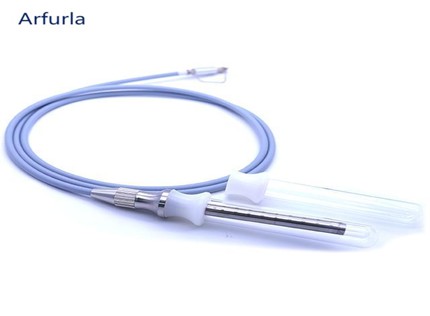

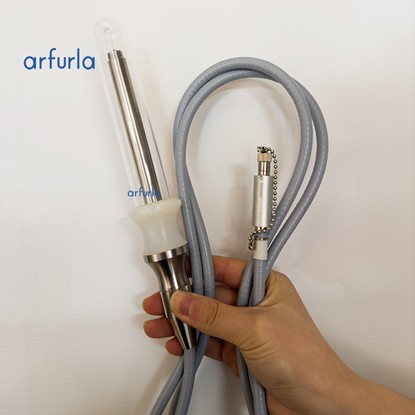

This is the gynecology handle for gynecological laser therapy. It consists of two main parts: two transparent slender tubes, which may be made of medical-grade optical materials and can transmit lasers; the tubes are connected to a light blue cable through white connectors. The cable is relatively soft and easy to move during operation. The connector at one end of the cable is used to connect to the host to transmit energy and control signals. There is a metal interface at the connection, with a threaded design on the surface, which may be used to stabilize the connection and ensure good electrical contact.

Functional principle

As the operating end of the 980nm 1470nm gynecological laser therapy device, the 980nm 1470nm wavelength laser it emits can accurately act on the vaginal tissue. When the laser energy is transmitted to the vaginal mucosa and submucosal tissue, the thermal effect stimulates the collagen in the tissue to contract, reorganize and regenerate. Specifically, the heat will thicken the vaginal mucosa and promote the contraction of the fibrous tissue of the vaginal wall, thereby reducing and tightening the vaginal cavity and achieving the effect of vaginal tightening.

Energy emission mode

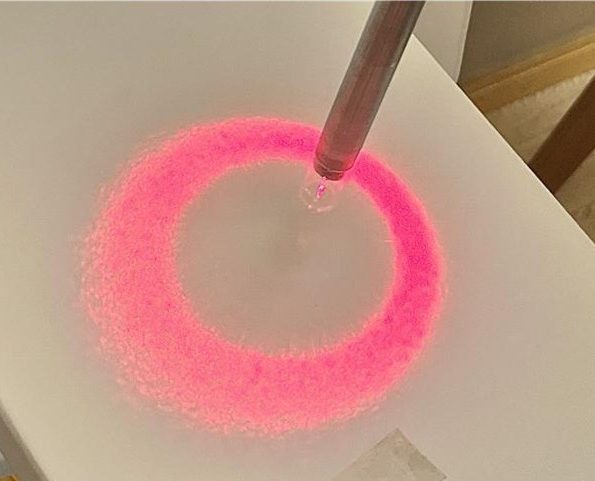

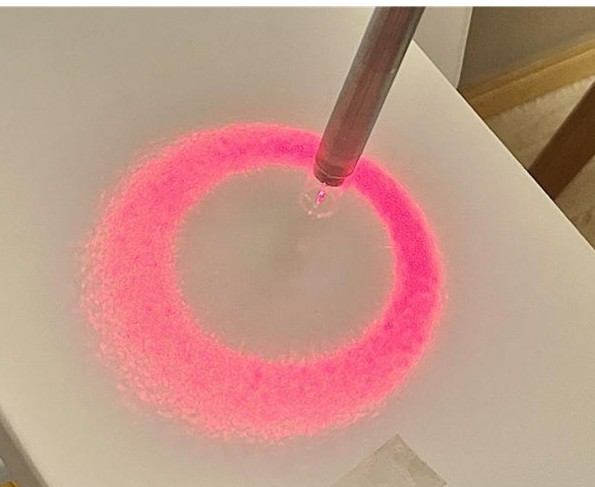

360° radial emission technology: The laser fiber can release energy evenly in the circumferential direction, covering the entire circumference of the vaginal wall tissue, avoiding the limitations of traditional single-point treatment and ensuring that there are no dead angles in the treatment area.

Controllable thermal effect: By precisely controlling the energy output, the vaginal mucosa is gently heated, fibroblast activity is activated, and collagen fiber contraction and regeneration are promoted.

Physical parameters

Optical fiber specifications:

Length: 219.5mm

Outer diameter: 3.5mm, inner diameter: 2.4mm

Connector: SMA905 standard interface, compatible with mainstream laser equipment, ensuring energy transmission stability.

Clinical application advantages

Minimally invasive: Compared with traditional surgical methods, the use of this handle for treatment is a minimally invasive operation, which causes less damage to vaginal tissue, shortens the recovery time after surgery, and reduces the risk of complications such as infection and bleeding.

Precise treatment: By precisely controlling the laser energy and depth of action, personalized treatment can be performed for different degrees of vaginal relaxation to improve the accuracy of the treatment effect.

Comfort: The treatment process is relatively comfortable, the patient feels less pain during and after the operation, and has little impact on daily life and work.

Scope of application

It is mainly suitable for women with vaginal relaxation caused by childbirth, aging and other factors. It can improve the problems of decreased sexual quality and vaginal dryness caused by vaginal relaxation. It also helps to improve the function of pelvic floor muscles and relieve the symptoms of mild stress urinary incontinence to a certain extent.
